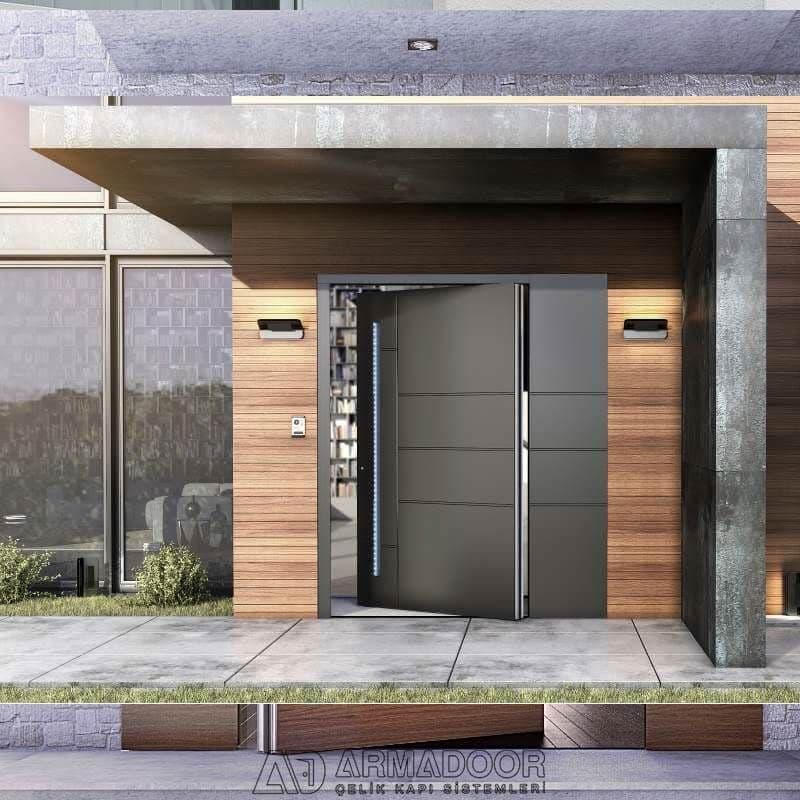

Pivot Door
The load is carried by the top and bottom pivot spindles, not by hinges. That makes sizes possible a hinged door could never hold.
- Up to 400 cm high
- 550+ completed projects
- 5-year mechanism warranty
What Is a Pivot Door and How Does It Work?
A pivot door carries the weight of the leaf on a central axis at the top and bottom rather than on side hinges. That construction allows leaf sizes and weights that are impossible with hinges, and the leaf opens through anything from 90 to 180 degrees.
The load passes through floor-recessed or top-mounted pivot spindles, which is why leaves weighing 200–400 kg work without trouble. The leaf can be aluminium, steel, wood-clad, glass or a composite panel; aluminium profiles have a 2–3 mm wall thickness, steel 1.5–2 mm.
Freedom in Sizing
Standard production covers single leaves up to 150 cm wide and 400 cm high. As the size grows, the pivot spindle capacity and the floor connection detail are recalculated.
- 200–400 kg leaf weight capacity
- Single leaf up to 150 cm wide and 400 cm high
- Aluminium, steel, wood-clad, glass or composite panel
Insulation and Security
With a thermal break profile the U-value drops to 0.9–1.4 W/m²K and sound insulation sits between 35 and 42 dB. Security class is RC2, or RC3 on steel models.
Hydraulic Damper and Automation
With a hydraulic damper the door slows and closes by itself instead of slamming. A motor option makes it fully automatic.
Classified Performance Values
The targets are Class 4 for air permeability, Class 9A for watertightness and Class C5 for wind resistance. These apply to the standard configuration and may change with the project.
- Leaf Capacity
- 400 kg
- Max. Height
- 400 cm
- Thermal Insulation
- 0.9 W/m²K
A made-to-measure door for your entrance
During the free survey we measure the opening and settle the leaf material and mechanism with you.
Survey, measurement and 3D design are free · Antalya and surrounding districts
Advantages of a Pivot Door
The decisive advantage of a pivot door is freedom in sizing. On a hinged door the weight bears on the hinges at one edge and large leaves begin to sag; on a pivot door the load runs through the top and bottom spindles into the floor.
- Works reliably with leaves up to 400 kg
- Single leaf up to 150 cm wide and 400 cm high
- 0.9 W/m²K thermal insulation with a thermal break profile
- 35–42 dB sound insulation depending on glazing and gaskets
- RC2 security class, RC3 on steel models
- Controlled closing with a hydraulic damper
- Mechanical multi-point, electronic or smart lock options
Pivot Door Specifications
The table below gives the technical values for the standard configuration. These are typical production ranges rather than a binding commitment. Profile section, pivot spindle capacity and anchor type are calculated separately for each project against leaf size, floor conditions and local wind data.
| Pivot Mekanizma Tipi | Zemin gömme veya üst montaj pivot milleri, hidrolik damper seçenekli |
|---|---|
| Taşıma Kapasitesi | 200-400 kg kanat ağırlığı (modele göre değişir) |
| Malzeme Seçenekleri | Alüminyum, çelik, ahşap kaplama, cam, kompozit panel |
| Maksimum Kanat Boyutu | Genişlik: 150 cm, Yükseklik: 400 cm (özel projelerde daha büyük) |
| Profil Et Kalınlığı | Alüminyum: 2-3 mm, Çelik: 1.5-2 mm |
| Cam Özellikleri | Tek, çift veya üçlü cam, temperli, lamine, low-e kaplama seçenekleri |
| Isı Yalıtım Değeri (U) | 0.9 - 1.4 W/m²K (termal break profil kullanımında) |
|---|---|
| Ses Yalıtımı | 35-42 dB (cam ve conta sistemine göre) |
| Hava Geçirgenlik Sınıfı | Class 4 (EN 12207) |
| Su Sızdırmazlık | Class 9A (EN 12208) |
| Rüzgar Dayanımı | Class C5 (EN 12210) |
| Açılma Açısı | 90-180 derece (modele göre) |
| Kilit Sistemleri | Mekanik çok nokta kilit, elektronik kilit, akıllı kilit seçenekleri |
| Güvenlik Sınıfı | RC2, RC3 (çelik modellerde) |
| Yüzey İşlemleri | Elektrostatik toz boya, anodik eloksal, ahşap lamine, özel kaplama |
| Renk Seçenekleri | RAL renk skalası, özel renk, ahşap dokulu kaplama |
| Otomasyon Uyumluluğu | Elektrikli motor, sensör, akıllı ev sistemi entegrasyonu |
| Garanti Süresi | Genel 2 yıl; motor ve mekanik aksam 5 yıl, statik boya 5 yıl |
| Sertifikasyonlar | CE belgeli, TSE, yangın sınıfı (modele göre) |
All specifications (19)
| Isı Yalıtım Değeri (U) | 0.9 - 1.4 W/m²K (termal break profil kullanımında) |
|---|---|
| Ses Yalıtımı | 35-42 dB (cam ve conta sistemine göre) |
| Hava Geçirgenlik Sınıfı | Class 4 (EN 12207) |
| Su Sızdırmazlık | Class 9A (EN 12208) |
| Rüzgar Dayanımı | Class C5 (EN 12210) |
| Açılma Açısı | 90-180 derece (modele göre) |
| Kilit Sistemleri | Mekanik çok nokta kilit, elektronik kilit, akıllı kilit seçenekleri |
| Güvenlik Sınıfı | RC2, RC3 (çelik modellerde) |
| Yüzey İşlemleri | Elektrostatik toz boya, anodik eloksal, ahşap lamine, özel kaplama |
| Renk Seçenekleri | RAL renk skalası, özel renk, ahşap dokulu kaplama |
| Otomasyon Uyumluluğu | Elektrikli motor, sensör, akıllı ev sistemi entegrasyonu |
| Garanti Süresi | Genel 2 yıl; motor ve mekanik aksam 5 yıl, statik boya 5 yıl |
| Sertifikasyonlar | CE belgeli, TSE, yangın sınıfı (modele göre) |
Structural calculation for your project
Leaf weight, spindle capacity and the floor connection detail are calculated separately for every project.
Survey, measurement and 3D design are free · Antalya and surrounding districts
How Is the Price of a Pivot Door Set?
The price cannot be quoted from a ready list; leaf size, material, level of insulation and installation conditions differ in every project. A firm figure only follows an on-site measurement.
Projects We Have Completed
A selection from real installations we completed in and around Antalya. We work at every scale, from house entrances to commercial projects.
Google Reviews
The reviews below are taken from Pergola Viva's Google Business Profile and are reproduced unchanged.
Frequently Asked Questions About Pivot Doors
Is a pivot door more durable than a hinged door?
It uses a different load-bearing principle. On a hinged door the weight bears on the hinges at one edge and large leaves begin to sag. On a pivot door the load runs through the top and bottom spindles into the floor, which is why 400 kg leaves work without trouble.
What is the largest pivot door you can make?
Standard production covers single leaves up to 150 cm wide and 400 cm high. On special projects those sizes can be increased through structural calculation. As the size grows, spindle capacity and the floor connection detail are recalculated.
Does a pivot door insulate?
With a thermal break profile the U-value drops to 0.9–1.4 W/m²K. Sound insulation runs from 35 to 42 dB depending on glazing and gaskets. The targets are Class 4 for air permeability, Class 9A for watertightness and Class C5 for wind resistance.
Does the door close by itself?
With the hydraulic damper option the door slows and closes by itself instead of slamming. We recommend it particularly on heavy leaves and on entrances exposed to wind. A motor option can make the door fully automatic.
What is the security class?
Depending on the model, RC2 — or RC3 on steel models. The lock can be a mechanical multi-point, electronic or smart lock. Where a fire rating is required, a suitable model is assessed separately.
What warranty comes with a pivot door?
The system as a whole carries a 2-year warranty. The pivot mechanism and the powder coating are covered for 5 years. Installation workmanship is covered separately.
